Cast Iron Manual Butterfly Valve with 304 Stainless Steel Disc - 16Bar
At a glance
Cast Iron Manual Butterfly Valve With 304 Stainless Steel Disc
Manual butterfly valves are ideal for water trucks; They are durable, rugged and maintenance-free. Butterfly valves are easy to install and don't require a gasket that's thanks to the inbuilt rubber (EPDM) wafer.
Common Applications Include:
- Water Trucks
- Irrigation
- and Non-Corrosive Industrial Applications
Features:
- Stainless Steel Disc(304)
- Stainless Steel Shaft (SS420) (CF8M)

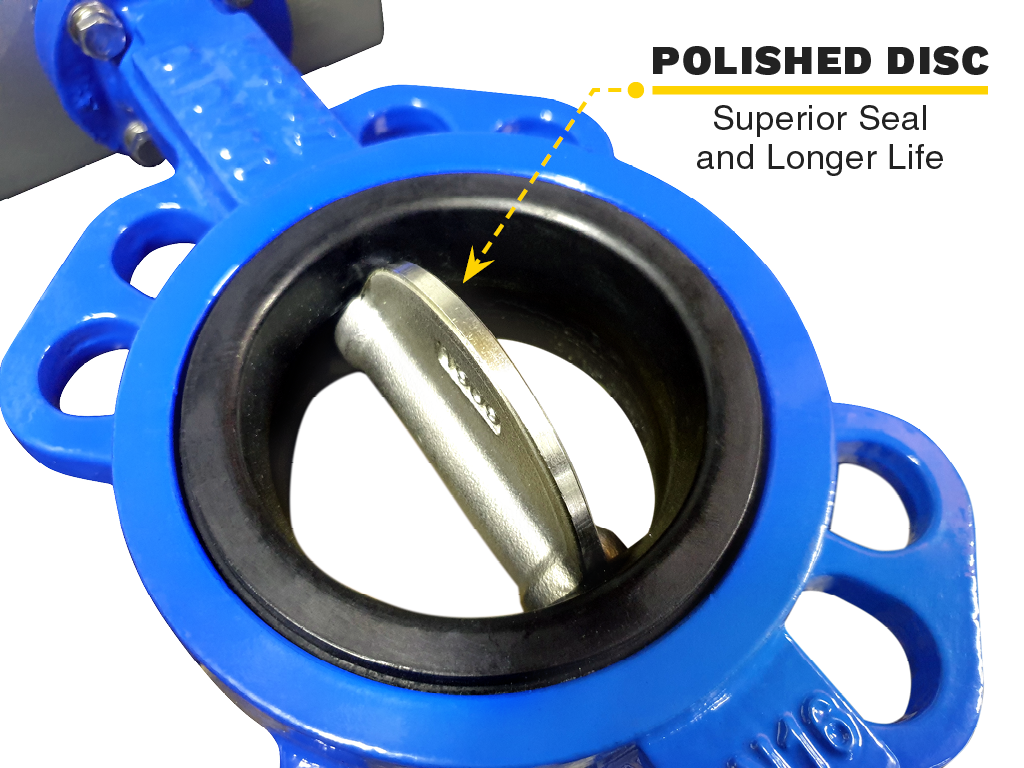

- Polished Disc
- Heavy Duty Die Cast Handle.
- High-Quality Epoxy Coating (BLUE)
| Model | Size (mm) | Pressure Range | Temperature | Square Drive Size | ISO | Torque (Nm) | A (+-3) | B (+-3) | C | D (+-1) |
| VBF-050M | 50 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 7.5 | 189 | 126 | 30 | 43 |
| VBF-065M | 65 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 11 | 202 | 133 | 30 | 46 |
| VBF-080M | 80 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 14 | 238 | 152 | 30 | 46 |
| VBF-100M | 100 | 0 to 16 Bar | -10°C to 100°C | 11mm | F07 | 26 | 276 | 170 | 30 | 52 |
| VBF-125M | 125 | 0 to 16 Bar | -10°C to 100°C | 14mm | F07 | 38 | 296 | 181 | 30 | 56 |
| VBF-150M | 150 | 0 to 16 Bar | -10°C to 100°C | 14mm | F07 | 78 | 324 | 196 | 30 | 56 |
| VBF-200M | 200 | 0 to 16 Bar | -10°C to 100°C | 17mm | F10 | 110 | 398 | 238 | 35 | 60 |
| VBF-250M | 250 | 0 to 16 Bar | -10°C to 100°C | 19mm | F10 | 185 | 448 | 258 | 35 | 68 |
| VBF-300M | 300 | 0 to 16 Bar | -10°C to 100°C | 22mm | F10 | 270 | 535 | 300 | 35 | 78 |
Express Post - AUD$27.27
| SKU | VBF-050M |
| Brand | T-Rex |
| Unit Of Measure | ea |
Cast Iron Manual Butterfly Valve With 304 Stainless Steel Disc
Manual butterfly valves are ideal for water trucks; They are durable, rugged and maintenance-free. Butterfly valves are easy to install and don't require a gasket that's thanks to the inbuilt rubber (EPDM) wafer.
Common Applications Include:
- Water Trucks
- Irrigation
- and Non-Corrosive Industrial Applications
Features:
- Stainless Steel Disc(304)
- Stainless Steel Shaft (SS420) (CF8M)
- Polished Disc
- Heavy Duty Die Cast Handle.
- High-Quality Epoxy Coating (BLUE)
| Model | Size (mm) | Pressure Range | Temperature | Square Drive Size | ISO | Torque (Nm) | A (+-3) | B (+-3) | C | D (+-1) |
| VBF-050M | 50 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 7.5 | 189 | 126 | 30 | 43 |
| VBF-065M | 65 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 11 | 202 | 133 | 30 | 46 |
| VBF-080M | 80 | 0 to 16 Bar | -10°C to 100°C | 9mm | F05 | 14 | 238 | 152 | 30 | 46 |
| VBF-100M | 100 | 0 to 16 Bar | -10°C to 100°C | 11mm | F07 | 26 | 276 | 170 | 30 | 52 |
| VBF-125M | 125 | 0 to 16 Bar | -10°C to 100°C | 14mm | F07 | 38 | 296 | 181 | 30 | 56 |
| VBF-150M | 150 | 0 to 16 Bar | -10°C to 100°C | 14mm | F07 | 78 | 324 | 196 | 30 | 56 |
| VBF-200M | 200 | 0 to 16 Bar | -10°C to 100°C | 17mm | F10 | 110 | 398 | 238 | 35 | 60 |
| VBF-250M | 250 | 0 to 16 Bar | -10°C to 100°C | 19mm | F10 | 185 | 448 | 258 | 35 | 68 |
| VBF-300M | 300 | 0 to 16 Bar | -10°C to 100°C | 22mm | F10 | 270 | 535 | 300 | 35 | 78 |
| SKU | VBF-ML |
| Brand | T-Rex |
| Unit Of Measure | ea |
Express Post - AUD$27.27
