XHD Hydraulic Driven Water Pump, Clock Wise
Australian Owned
Same Day Dispatch
40 Years of Experience
The Industry Standard
Designed specifically for water trucks, off the back of many years of experience and development, the XHD as the name suggests is robust and built for the most demanding environments.

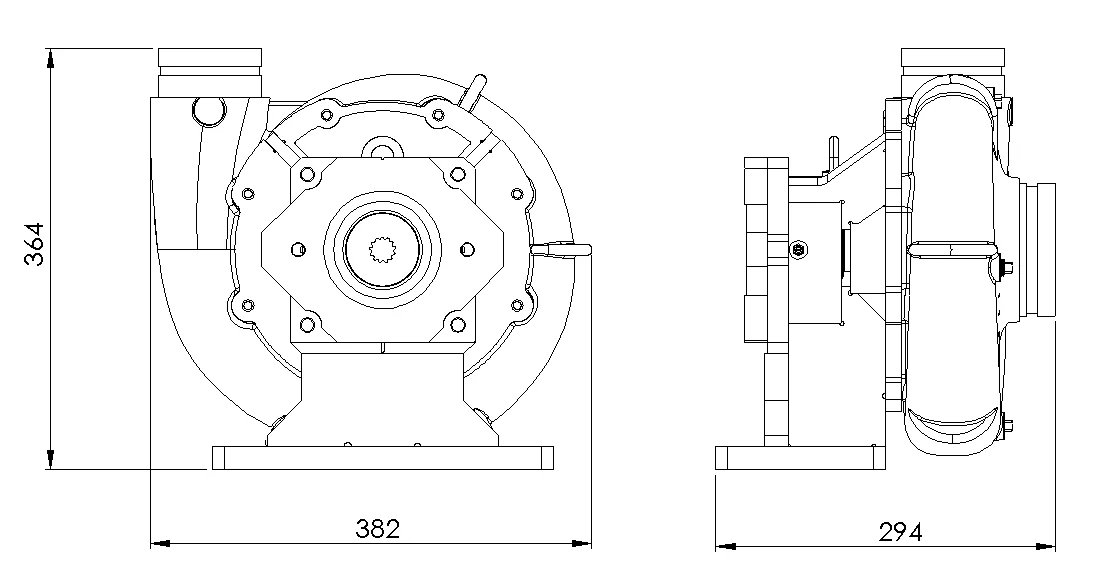

The unique frame design keeps the required footprint small and allows the Volute housing to be rotated to align with your pipework.
Roll groove inlet and outlet make installation simple.
Features
- High Performance
- Cast Iron Volute and Impeller
- Spline Drive
- Durable Carbon Ceramic Design
- Wide Operating Range, Ideal for Variable Flow Hydraulic Systems
- Low Maintenance Design
- Chromoly Shaft
- Durable Powder Coating.
Motor Options

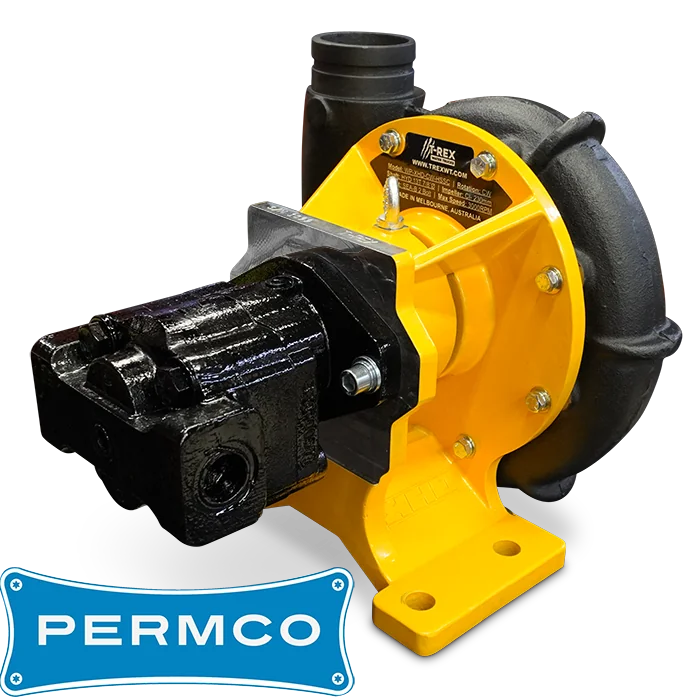

Permco 32cc Gear Motor
Max RPM 3000
Oil Requirement @ 3000RPM: 96 Litres Per Minute
Max Pressure 275 Bar (4000PSI)
Inlet Port 1" BSPP
Outlet Port 1" BSPP
Case Drain 3/8BSPP
Body Material: Cast Iron Body, Steel Gears
Made in USA

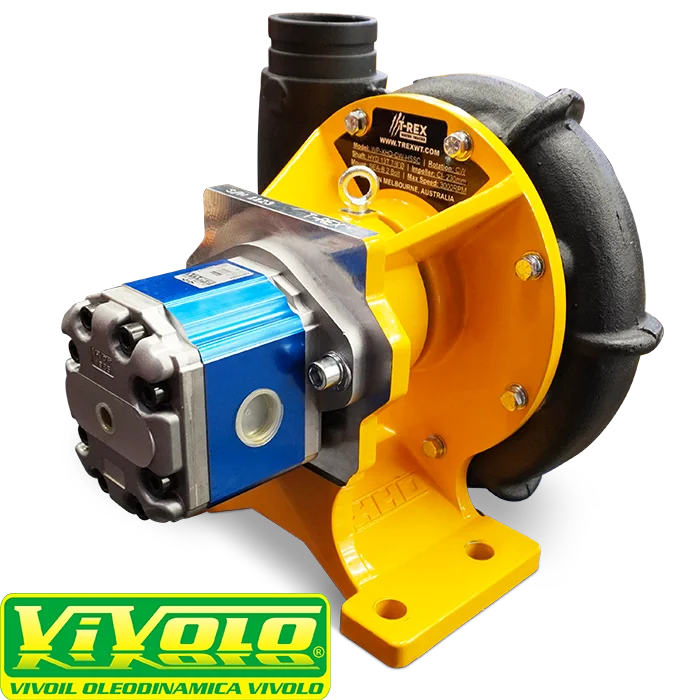

Vivoil 27cc Gear Motor
Max RPM 3000
Oil Requirement @ 3000RPM: 96 Litres Per Minute
Max Pressure 250 Bar (3625PSI)
Inlet Port 1" BSPP
Outlet Port 1" BSPP
Case Drain 3/8BSPP
Body Material: Diecast and Extruded Aluminium Body, Steel Gears
Made in Italy
| SPECIFICATIONS | |
|---|---|
| Inlet | 100mm (4") Roll Groove |
| Outlet | 80MM (3") Roll Groove |
| Max Speed | 3000 RPM |
| Hydraulic Motor Mount | SEA-B 2 Bolt |
| Motor Shaft | 7/8"13 Tooth Spline |
| Shaft Material | High tensile 4140 Chrome-Molybdenum |
| Impeller Material | Cast Iron |
| Frame Material | A356.0-T6 |

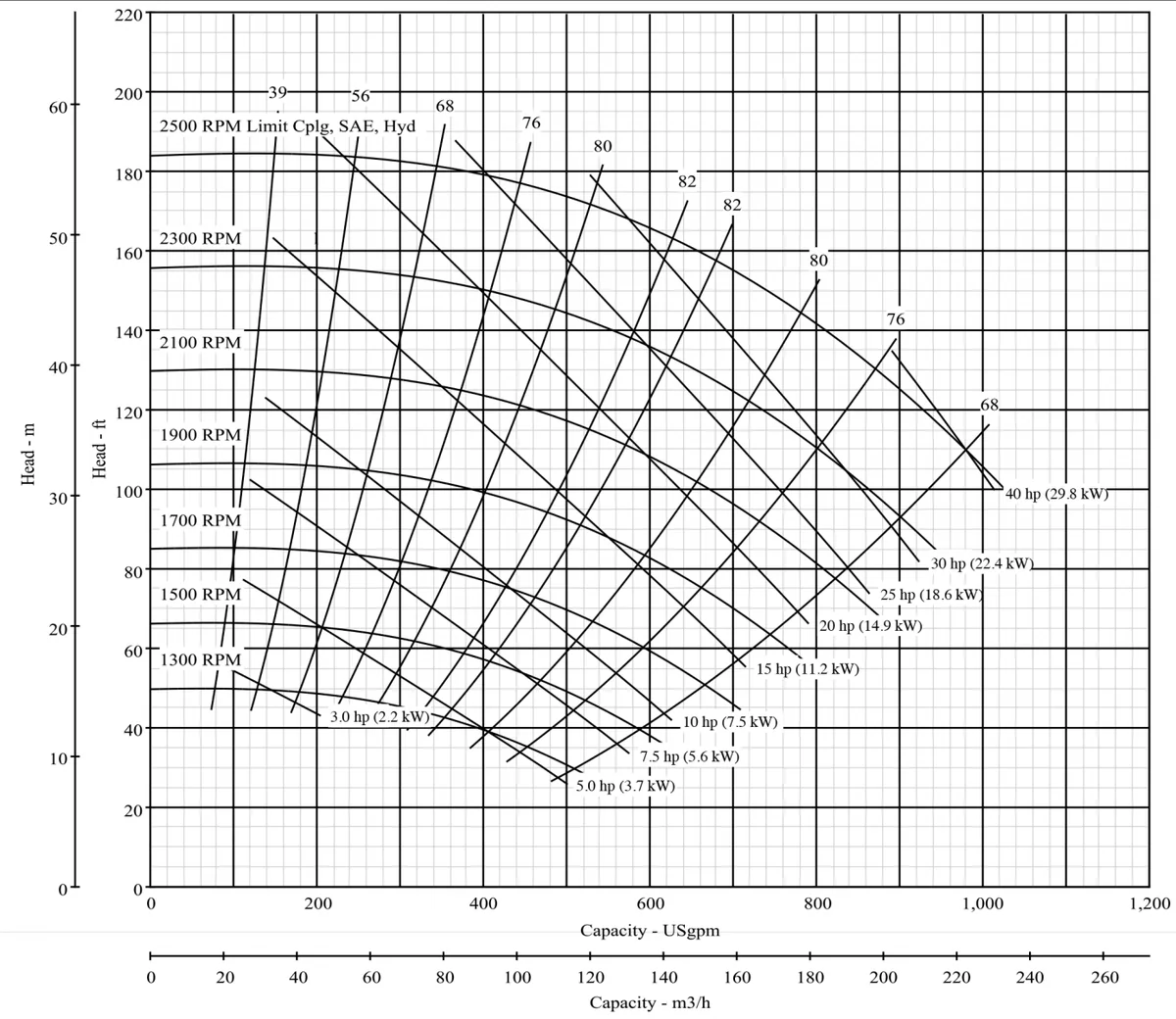

| PERFORMANCE | |
|---|---|
| Max Power | 40HP 30KW |
| Max Flow | 43PSI @ 3785LPM 30KW |
| Max Pressure | 80PSI @ 1000 LPM 15KW |
| Max Efficiency | 70PSI @ 2450LPM 23KW |
The advantages of the XHD Water Pump
Reliability: The XHD water pump is designed to perform; there are 100s of XHD pumps that are operating day in, day out.

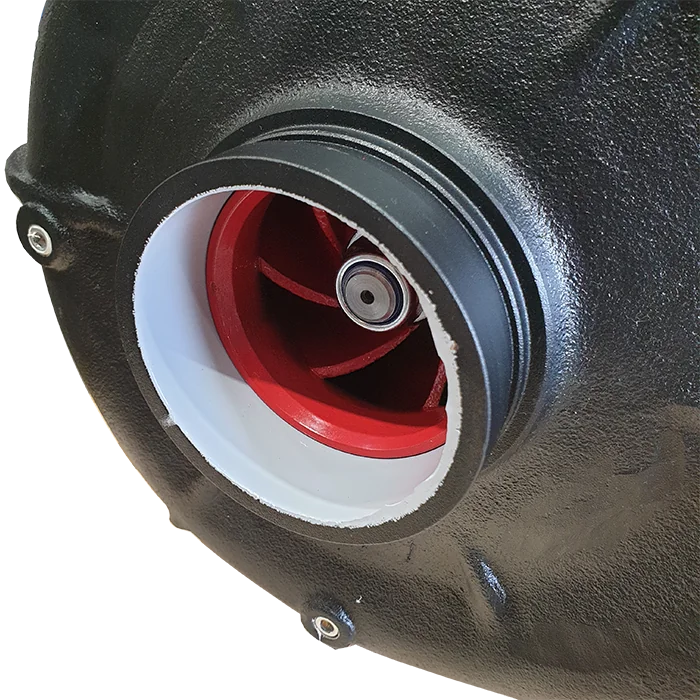

Efficiency: The XHD has a highly efficient wet end, providing more water with less power and minimum water turbulence thanks to the offset volute.
Precision: Alignment of the hydraulic motor and water pump shafts is critical to low operating temperatures and long life. The XHD one-piece frame, one-piece shaft, and balanced impeller ensure years of trouble-free operation.
Easy Installation: The XHD features a compact footprint and simple yet flexible pipe coupling options.
Long, trouble-free life: Large oversized bearings, a large cross-section shaft, a Simple Grease point, and an extreme-duty mechanical seal will provide years of service.
Adjustable Volute Positions: Easily rotate the volute to align with your pipework. You can adjust the volute in 45-degree increments.
Let us show you some of the features we're excited about.

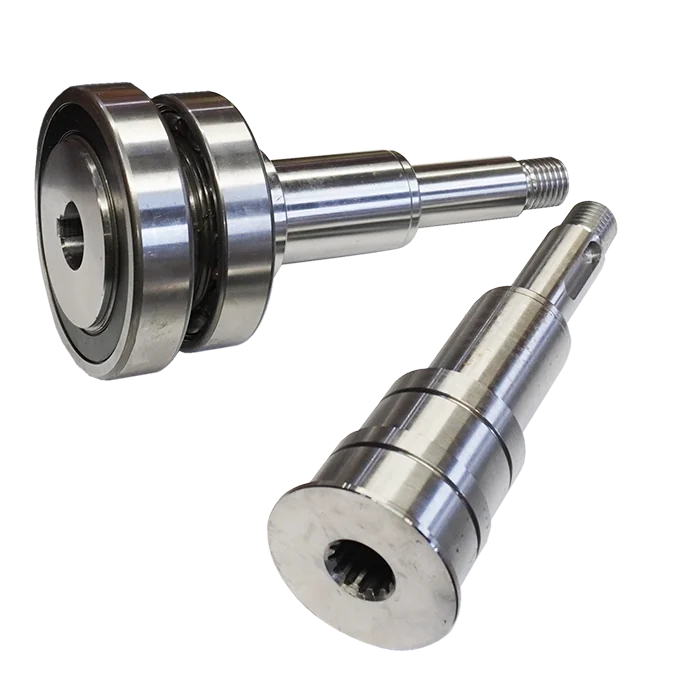

Heavy Duty Shaft
The water pump shaft connects the hydraulic motor to the impeller and transfers any load to the frame. The XHD shaft is highly rigid and ensures that the hydraulic motor is not subjected to lateral loads even in circumstances where a foreign object passes through the pump. We also use large-high-quality pressed-on bearings and have a simple easy-to-access grease point.

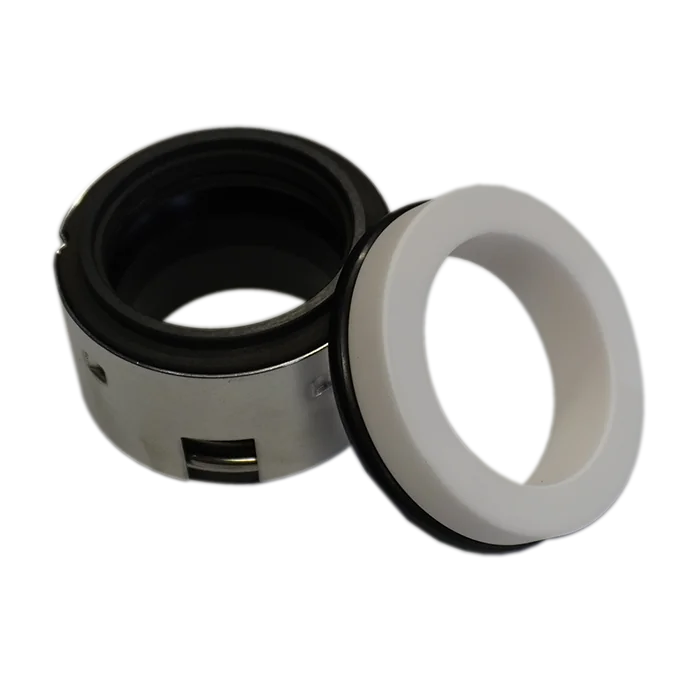

Large, Durable, Mechanical Seal.
Mechanical seals maintain the seal between the wet end of the pump and the environment. Mechanical seals are required to work at high speeds and pressures and can be inconvenient to replace when they fail. We have used a type 502 Seal that is renowned as the most durable seal for applications where pumps may run dry and where the water may have contaminated such as rock and sand.

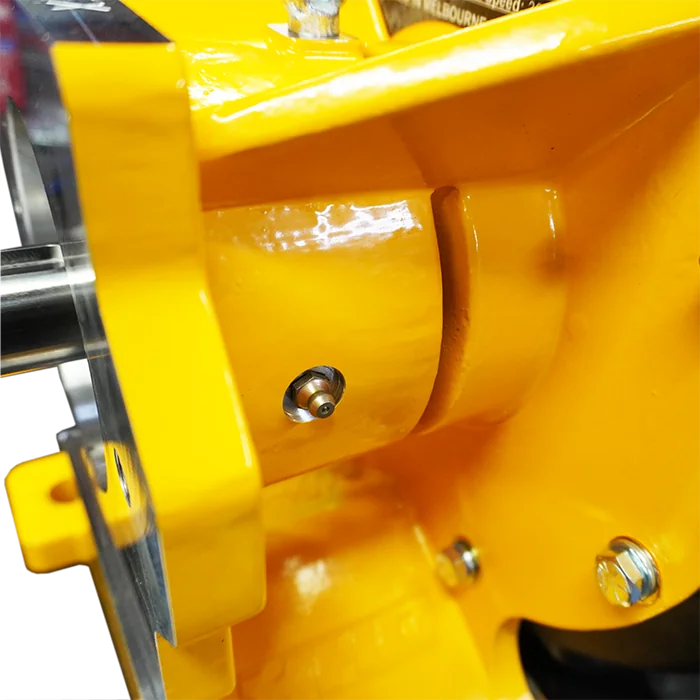

Simple Maintenance.
One grease point,
Options,
Epoxy Wet End Coating,
Speed Sensor,
Pressure Sensor,
Check out how we make our water pumps.
| Hydraulic Motor | 27CC VIVOIL Gear Motor 81LPM Max or 32cc PERMCO Gear Motor 96L Per Min MAX or 32CC VIVOIL Gear Motor 96LPM Max or 25CC Piston Motor 95LPM Min MAX |
| SKU | WP-XHD-CW-HSSC-27CC |
| Shipping Weight | 66.0 kg |
| Shipping Dimensions (L x W x H) | 45 cm x 55 cm x 55 cm |
| Package Volume | 0.1361 m³ |
