Roll Grooved Butterfly Valve, Manual Lever Operated
A great alternative to flanged butterfly vales, easier to install and more flexible installation options.
Australian Owned
Same Day Dispatch
40 Years of Experience
Our Roll grooved butterfly vales are painted with a high-quality EPOXY powder coat to keep the valves looking new and easy to clean. These valves feature a long life resilient seal and are designed for a high duty cycle. Working Pressure 362PSI
Features
- Easier to install, Position the handle in any position
- No need for flanges or bolts
- An ideal option for water trucks
| Dimensions | Pressure Rating |
Size (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| DN | Inch | PSI | OD | L | H1 | H2 | H3 | Top Flange |
| 50 | 2" | 362 | 60.3 | 81 | 56 | 91 | 39 | F05 |
| 65 | 2.5" | 362 | 76.1 | 96.8 | 68 | 104 | 39 | F05 |
| 80 | 3" | 362 | 88.9 | 96.8 | 75 | 111 | 39 | F07 |
| 100 | 4" | 362 | 114.3 | 115.8 | 93 | 130 | 39 | F07 |

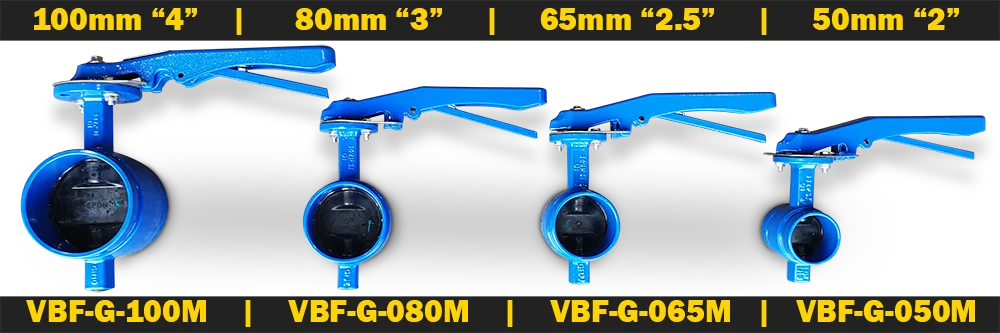

| Size | 50mm | 2" or 65mm | 2.5" or 80mm | 3" or 100mm | 4" |
| SKU | VBF-G-050M |
| Shipping Weight | 2.6 kg |
| Shipping Dimensions (L x W x H) | 22 cm x 22 cm x 10 cm |
| Package Volume | 0.00484 m³ |
