Push Fit Elbow
Australian Owned
Same Day Dispatch
40 Years of Experience

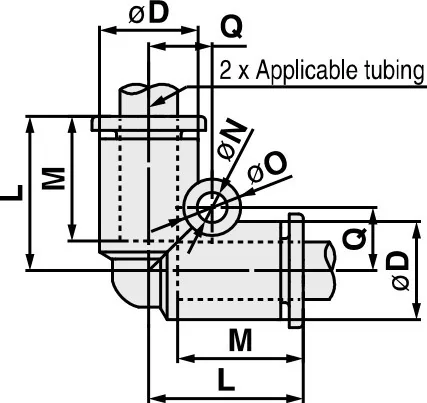

| Applicable Tubing O.D.(mm) |
Model | øD | Release Button Dimensions |
L | Q | M | Mounting hole | Effective Area mm2 |
Min. Port Size | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X | Y | øO | øN | Thickness | Nylon | Urethane | ||||||||
| ø3.2 | KQ2L23-OOA1 | 7.1 | 6.7 | 9.5 | 14.9 | 5.4 | 13.3 | 6 | 3.2 | 7.1 | 3 | 2.5 | 2.5 | 1 .6 |
| ø4 | KQ2L04-OOA1 | 8.2 | 7.7 | 10 | 15.3 | 5.7 | 13.3 | 6 | 3.2 | 8.2 | 4.2 | 4.2 | 3 | 1.9 |
| ø6 | KQ2L06-OOA1 | 10.4 | 9.7 | 12 | 16.3 | 6.8 | 13.3 | 6 | 3.2 | 10.4 | 1 1 .4 | 9 | 4.5 | 2.7 |
| OD Tube Size | 4mm or 6mm |
| SKU | AF-KQ2L04-00A1 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions (L x W x H) | 2 cm x 2 cm x 2 cm |
| Package Volume | 8e-06 m³ |
