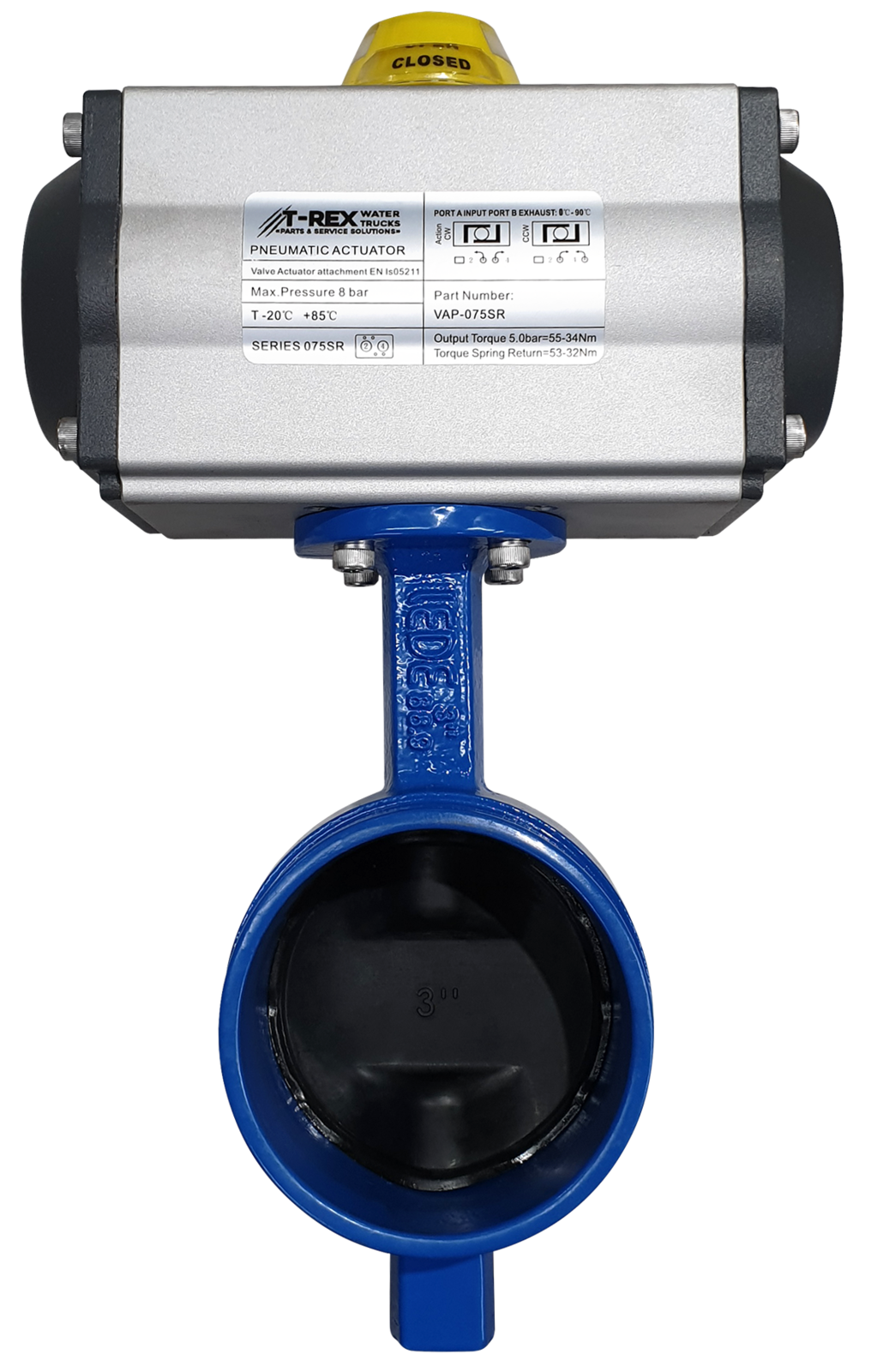

Double Acting Air Actuated Roll Grooved Butterfly Valve
At a glance
Double Acting Air Actuated Roll Grooved Butterfly Valve
Our grooved Double-acting butterfly vales are painted with a high-quality EPOXY powder coat to keep the valves looking new and easy to clean. These valves feature a long life resilient seal and are designed for a high duty cycle. Working Pressure 362PSI
Double-acting butterfly valves are a great way of controlling water flow remotely. Unlike a spring return butterfly valve air is required to open and close the valve. Simple to control with either a Pneumatic Air Switch or Namur Valve.
Grooved butterfly valves are ideal for water trucks; They are durable, rugged and maintenance-free. Grooved butterfly valves are easy to install.
Common Applications Include:
- Water Trucks
- Irrigation
- and Non-Corrosive Industrial Applications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure | OD | L | H1 | H2 | H3 | Top Flange |
| VBF-G-050-DA | 50 | DA50 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 60.3 | 81 | 56 | 91 | 39 | F05 |
| VBF-G-065-DA | 65 | DA50 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 76.1 | 96.8 | 68 | 104 | 39 | F05 |
| VBF-G-080-DA | 80 | DA63 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 88.9 | 96.8 | 75 | 111 | 39 | F07 |
| VBF-G-100-DA | 100 | DA63 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 114.3 | 115.8 | 93 | 130 | 39 | F07 |
Express Post - AUD$27.27
| SKU | VBF-G-065-DA |
| Brand | T-Rex |
Double Acting Air Actuated Roll Grooved Butterfly Valve
Our grooved Double-acting butterfly vales are painted with a high-quality EPOXY powder coat to keep the valves looking new and easy to clean. These valves feature a long life resilient seal and are designed for a high duty cycle. Working Pressure 362PSI
Double-acting butterfly valves are a great way of controlling water flow remotely. Unlike a spring return butterfly valve air is required to open and close the valve. Simple to control with either a Pneumatic Air Switch or Namur Valve.
Grooved butterfly valves are ideal for water trucks; They are durable, rugged and maintenance-free. Grooved butterfly valves are easy to install.
Common Applications Include:
- Water Trucks
- Irrigation
- and Non-Corrosive Industrial Applications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure | OD | L | H1 | H2 | H3 | Top Flange |
| VBF-G-050-DA | 50 | DA50 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 60.3 | 81 | 56 | 91 | 39 | F05 |
| VBF-G-065-DA | 65 | DA50 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 76.1 | 96.8 | 68 | 104 | 39 | F05 |
| VBF-G-080-DA | 80 | DA63 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 88.9 | 96.8 | 75 | 111 | 39 | F07 |
| VBF-G-100-DA | 100 | DA63 | Vacuum to 16 BAR | 0°C to 80°C | 6 to 8 BAR | 114.3 | 115.8 | 93 | 130 | 39 | F07 |
| SKU | VBF-G-DA |
| Brand | T-Rex |
Express Post - AUD$27.27
